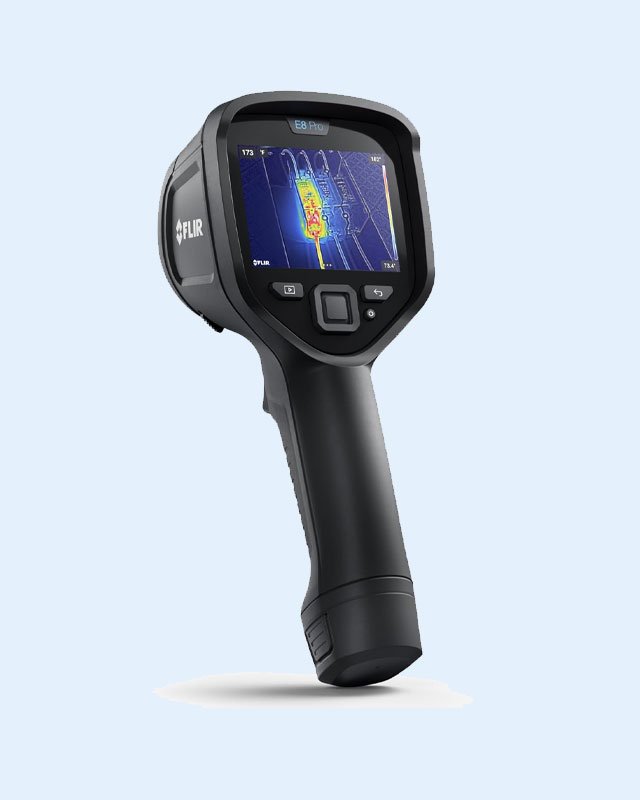

FLIR E8 Pro Infrared Camera

IR Resolution

320 × 240 (76,800 pixels)

Thermal Sensitivity/NETD

<0.04°C (0.07°F) / <40 mK at 30°C (86°F)

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Field of view (FOV)

33°

Digital Camera

5 MP

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Digital camera

Display

3.5 in, 640 × 480 color LCD

Storage Media

Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)

Imaging & Optical

Color Palettes

Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC

Detector Type

Uncooled microbolometer

Digital Camera

5 MP

Field of view (FOV)

33°

Focus

Focus free

Image Frequency

9 Hz

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Digital camera

IR Resolution

320 × 240 (76,800 pixels)

Minimum Focus Distance

0.36 m (1.18 ft)

Spectral Range

7.5 µm to 13 µm

Thermal Sensitivity/NETD

<0.04°C (0.07°F) / <40 mK at 30°C (86°F)

Measurement & Analysis

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Delta T

Yes, NFPA 70B compliant

Isotherm

Above alarm, below alarm

Measurements correction

Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation

Object Temperature Range

-20°C to 550°C (-4°F to 1022°F) in two ranges

Spot Meter

Center spot; box with min/max

User Interface

Display

3.5 in, 640 × 480 color LCD

Text

Text annotation on image using onscreen keyboard

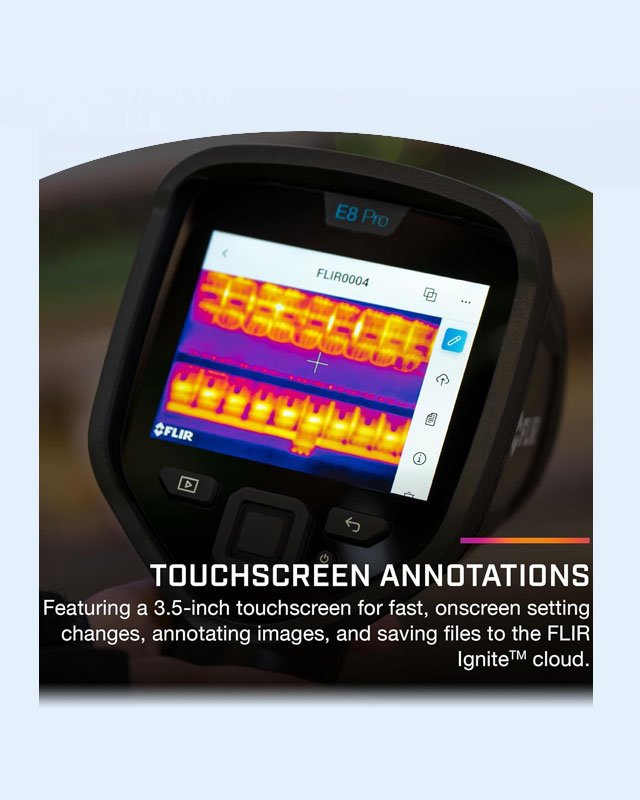

Touchscreen

Capacitive touch

Power

Battery operating time

4 hours

Battery type

Rechargeable Lithium-ion battery

Charging system

Battery is charged inside the camera or in specific charger

Charging Time

2 hours

Power Management

Automatic shut-down

Environmental & Certifications

Certifications

UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC

EMC

EN 301 489-1
EN 301 489-17
EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B


Encapsulation

IP54 (IEC 60529)

Operating Temperature Range

-15°C to 50°C (5°F to 122°F)

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

-40°C to 70°C (-40°F to 158°F)

Vibration

2 g (IEC 60068-2-6)

General

Flashlight

Bright LED

List of Contents

Infrared camera, hard transport case, battery (inside camera) + extra battery, tabletop charger, power supply (with EU, UK, US and AU plugs), micro USB adapter, FLIR Thermal Studio Starter, and printed documentation

Packaging Size

385 mm × 165 mm × 315 mm (15.2 in × 6.5 in × 12.4 in)

Size (L x W x H)

244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Weight

0.610 kg (1.34 lbs)
